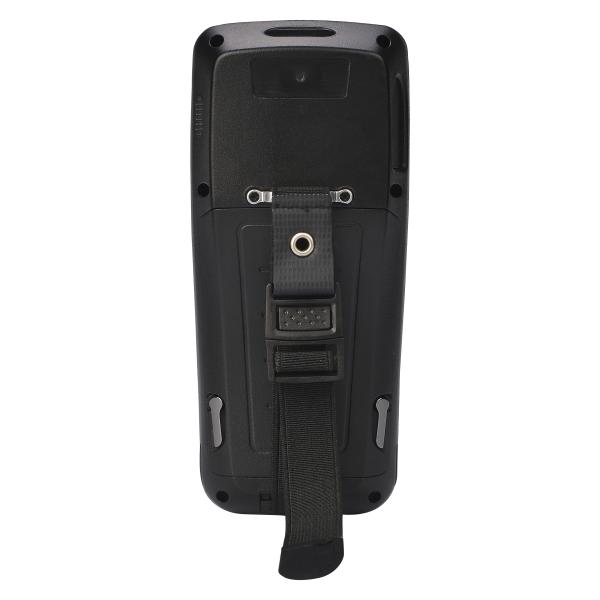

P6S Wirelss warehouse/courier Android mobile 1D 2D PDA barcode
scanner
P6S use MediaTek Crotex-A9 architecture of the MT6737as the
processor.Android 7.0 operating system.
Design of a wireless handheld device based on mobile phone
technology, equipment and powerful extension, can customize
multiple function.
It is widely used in MID, POS, PDA, intelligent Home Furnishing,
video surveillance, medical devices, and other industrial areas.
Product advantages: stable, SDK support,large capacity battery,
standby time is longer,the high degree of integration, industrial
design.
Basic Function:
Android 7.0+4G+Wifi+Bluetooth+Camera
Optional Function:
RFID(13.56MHZ);UHF(9200)/UHF(R2000);1D SE965;2D SE4750;Fingerprint
Parameters | Describe |
CPU Dominant frequenc | MTK6737 1.2GHZ-1.5GHZ Quadrupolar nuclei |
OS | Android7.0 |
Memory | 8GB+1GB |
Display | 4 Inch LCD,480*800 TFF |
Touch | Capacitive screen or Resistive Touch Panel |
Communication | WIFI,GPS,Bluetooth,4G/WCDMA/EDGE/GSM,USB,UART |
External input | 26 full keyboard input, audio input |
Output | Stereo speaker output,video playback |
SD/TF | 128GB(MAX) |
Standby Current | below 3mAh |
Working current | 180mAh |
Battery capacity | 3400MAH or 3800MAH |
Battery voltage | 3.4V~4.2V |
Stand-by time | over 150h |
Working hours | over 8h |
Development platform | C,JAVA |
Cell voltage | AC 100–240V,50/60Hz |
Charging current | 800mA |
End-use temperature | -15℃~65℃ |
Stroage temperature | -20℃~80℃ |
Dimension | 165.3(L)*72.5(W)*37.2(H)mm |
Weight | 200g(without battery) |
Camera | 5.0 Million Pixels |
The extensible function |
HF | 13.56MHz | ISO14443A/ISO14443B/ISO15693 |
Read-write distance | 0~6cm |
Working current | <90mAh |
UHF(9200) | 865MHZ-950MHZ | EPC Class 1Gen2 & ISO18000-6C |
Read-write distance | 0~200CM |
Working current | 900mAh |
UHF(R2000) | 865MHZ-950MHZ | EPC Class 1Gen2 & ISO18000-6C |
Read-write distance | 0~500CM |
Working current | 1100mAh |
1D Barcode | Terminal brand | Symbol SE965 |
Bar code type | UPC/EAN,Code 128,Code 39,Code 93,ode 11,Interleaved 2 of 5,Discrete 2 of 5,hinese 2 of 5,Codabar,MSI,RSS,Data Options,Serial Interface,Event Reporting |
Working current | 50mA |
2D Barcode | Terminal brand | Symbol SE4750---soft decode |
Bar code type | Code39,PDF417,Data Matrix |
Working current | 450mA |
FingerPrint | Biometric fingerprint | Inductive, Capactitance |
| | | |
Founded in 2010, TOUSEI was offering pos terminal,PDA barcode
scanner and printer business.
Since 2012,TOUSEI Start to attend international exhibtions such as
Cebit,Gtex,Eurocis,Trustech,Computertex,etc.
TOUSEI has its own factory and R&D team,is recognized by all
the partners,also cooperating with customers to provide customize
service.
TOUSEI is expected to soon become the leading company in providing
total soluion for POS and mobile printing.Our products have been
certified by EMV,PCI,IP64, ROHS, CE, FCC,etc.
TOUSEI is the fastest growing provider of professional intelligent
financial and commercial hardware Equipment.
Our patented technologies yield highly intelligent, reliable, small
footprint solutions that outperform others at a fraction of the
cost.
